Speed Control

GPS and vehicle speed limiter systems

GPS-enabled variable speed limiter technology that improves road safety, reduces the environmental footprint and improves vehicle performance.

Overview

What does a speed limiter do?

A vehicle speed limiter stops a vehicle going faster than a set speed, and a GPS speed limiter changes that speed automatically by location. Scorpion supplies both through Autokontrol, part of the Scorpion Group, for fleets, airports and logistics sites, with every unit designed and built in Chorley. Speak to us about limiting your fleet.

Speak to us about speed limiters

Limiters suit cars, vans, trucks, buses and plant, on petrol, diesel, hybrid and all-electric power.

Key facts

  • Drive-By-Wire, SENT, System 80 and GeoKontrol 2
  • EU/ECE R89 type approved
  • GPS zones from 5 to 120 km/h with GeoKontrol 2
  • System 80 fits in about 60 minutes
  • Drive-By-Wire fits in about 1.5 hours
  • Designed and built in Chorley, UK
Autokontrol speed limiter system
Autokontrol

Speed management systems from Autokontrol

Autokontrol manufactures and supplies speed management systems. Its products actively improve road safety, reduce the environmental footprint and improve vehicle performance.

Every unit is designed and built in Chorley, UK, to the highest quality standards and specifications. The range covers every type of vehicle, equipment and plant: petrol, diesel, hybrid and all-electric.

Visit Autokontrol speed limiters to see the full range.

Book a Consultation
General Use

Speed limiting for duty of care and fuel saving

Speed limiting may be imposed by employers as a means of fuel saving, reducing emissions or as part of their duty of care requirements. Employers have a responsibility, under various National Health and Safety Executive guidelines, to actively manage health and safety in the workplace, including vehicles. In a time when duty of care and health and safety are top of most company agendas, the geo-fenced limiter provides the answer.

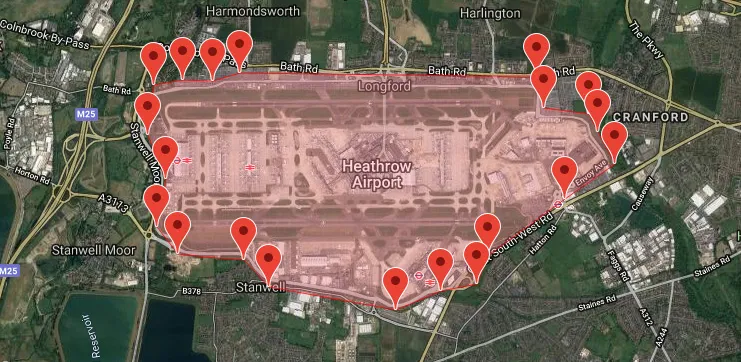

Map of a zoned area used by the GeoKontrol GPS speed limiter
How It Works

Automatic geo-fenced speed control

Employers can designate their own high-risk areas, on top of our continually updated database of road speed limits. These areas are pre-loaded as geofences into the GeoKontrol device. Each geofence holds detailed latitude and longitude data and can cover an area of any size and shape.

Take a vehicle visiting an airport with the perimeter plotted in the GeoKontrol unit. It automatically reduces to the required speed as soon as it passes through the entrance gates, and reverts to normal speed on exit.

The example image shows an area that has been zoned. Once the vehicle enters this area, its speed automatically reduces to a lower programmed speed.

The Range

Speed limiters for every throttle system

From mechanical fuel-line control to Drive-By-Wire, SENT and GPS geofenced control: an EU/ECE R89 approved limiter for every vehicle in your fleet. Each unit is designed and manufactured in the UK by Autokontrol, part of the Scorpion Group.

Drive-By-Wire (DBW) Speed Limiter

Our flagship electronic speed limiter for modern vehicles with drive-by-wire throttle systems. Precision control, tamper-proof design, CAN bus integration.

Download the full datasheet (PDF)

Regulatory Compliance

Meets all UK, EU, and international speed limiter requirements. EU/ECE R89 type approved for goods vehicles over 3.5 tonnes and passenger vehicles with 8 or more seats.

Lower Fuel Use

Lower top speeds mean lower fuel use. Capping the maximum speed of every vehicle in your fleet trims fuel burn across the whole fleet, and the saving grows with fleet size.

Safety

Exceeding the speed limit was a contributory factor in 29% of fatal collisions in Great Britain in 2025, among collisions where a factor was recorded (DfT, Reported road casualties Great Britain: fatal 4 speed factsheet, 2025). Speed limiters actively prevent speeding, protecting drivers, passengers, and other road users.

Insurance

Fitting an approved speed limiter can matter to fleet insurers. Ask your insurer whether it affects your premium or policy terms.

Tamper Resistance

Tamper-resistant sealing prevents unauthorised modification. The system detects and records any attempt to bypass or disable the speed limiter.

Universal Compatibility

Compatible with virtually all commercial vehicles - HGVs, LCVs, buses, and specialist vehicles. Works with both 12V and 24V electrical systems.

Technical Specifications

Product Name Drive-By-Wire (DBW) Speed Limiter, by Autokontrol
Technology Electronic Drive-By-Wire throttle signal interception
Speed Range Adjustable from 10km/h to 130km/h
Speed Accuracy +/- 1km/h
Power Supply 12V DC or 24V DC (auto-sensing)
Current Draw Less than 50mA standby, less than 200mA operating
Operating Temperature -40°C to +85°C
Speed Input VSS (Vehicle Speed Sensor) or CAN bus
Enclosure IP67 rated, tamper-resistant sealed
Type Approval EU/ECE R89
Certifications UTAC, TUV, VCA
Vehicle Applications HGV, LCV, bus, coach, specialist vehicles
Warranty 2-year manufacturer warranty on hardware
Manufacturing Chorley, Lancashire, UK

Compatible Vehicles

  • DAF CF / XF
  • MAN TGX / TGS
  • Mercedes Actros / Atego
  • Scania R / G / P Series
  • Volvo FH / FM / FE
  • Iveco Stralis / Eurocargo
  • Renault T Range / D Range
  • Ford Transit / Transit Custom
  • Mercedes Sprinter / Vito
  • Volkswagen Crafter / Transporter
  • Iveco Daily
  • Renault Trafic / Master
  • Peugeot Boxer / Expert
  • Citroen Relay / Dispatch
  • Alexander Dennis Enviro
  • Optare Solo / Versa
  • Wrightbus StreetVite
  • Volvo B-Series
  • Mercedes Citaro

SENT Speed Limiter

Speed limiter for the latest generation of vehicles using SENT (Single Edge Nibble Transmission) throttle signals. Future-proof speed control for Euro VI+ and beyond.

Download the full datasheet (PDF)

What happens if I fit a DBW limiter to a SENT vehicle?

It won't work. The DBW limiter expects a PWM or analogue signal. A SENT vehicle transmits digital nibbles that the DBW unit cannot interpret. You will get either no speed limiting or engine fault codes. Always verify your vehicle's throttle protocol before ordering.

Can the SENT limiter be retrofitted to older vehicles?

The SENT limiter is designed for SENT-protocol vehicles. For older vehicles with analogue or PWM throttle signals, use our DBW Speed Limiter. For mechanically controlled engines, use the System 80 Speed Limiter, which works on the fuel line.

Is the SENT limiter more expensive than the DBW?

Pricing is comparable. The SENT limiter uses more advanced signal processing hardware, but we maintain competitive pricing across all product lines. Request a quote for your specific fleet requirements.

Technical Specifications

Product Name SENT Speed Limiter, by Autokontrol
Protocol SENT (SAE J2716) - also supports PWM fallback
Throttle Type SENT sensor (digital)
Speed Setting Range 20-120 km/h (factory-set)
Speed Accuracy ± 1 km/h at set speed
Response Time < 1 ms
Power Supply Vehicle 12V / 24V DC
Operating Temperature -40°C to +85°C
Tamper Protection Tamper-evident seal with unique serial number
Certifications EU/ECE R89, UTAC, TÜV, VCA
Typical Installation Time 90-120 minutes
Warranty 2-year manufacturer warranty on hardware
Designed & Manufactured Chorley, Lancashire, UK

Compatible Vehicles

  • DAF - XG, XG+, XF (2021+), CF (2021+)
  • Mercedes - Actros MP5, Arocs (2021+), new Atego
  • Scania - Super range (2021+), all new-generation trucks
  • Volvo - FH, FM, FMX (2021+), FE/FL (2022+)
  • MAN - TGX, TGS, TGL (2020+ new generation)
  • Iveco - S-Way, new Daily (2022+)
  • Renault - T High, T, D, C range (2021+)

System 80 Speed Limiter

The proven mechanical speed limiter that works on the vehicle's fuel line. Reliable, simple and trusted worldwide for decades.

Download the full datasheet (PDF)

Reliability in Harsh Conditions

With no electronic components, the System 80 is immune to the electrical failures, water ingress, vibration damage, and software glitches that can affect electronic speed limiters. It operates in extreme heat, extreme cold, dust, and wet conditions without degradation. This makes it the preferred choice for vehicles operating in harsh environments - construction sites, quarries, mines, agricultural land, and developing markets with limited technical support infrastructure.

The Simplest Installation

A trained installer can fit a System 80 in around 60 minutes on most vehicles. The installation requires no specialist diagnostic equipment, no laptop, no CAN bus configuration, and no ECU programming. The unit is fitted to the fuel line of the vehicle, a straightforward mechanical procedure that any competent vehicle technician can perform.

Lowest Total Cost of Ownership

No firmware updates. No annual software licences. No calibration drift requiring recalibration visits. No battery replacements. The System 80's maintenance requirement is limited to periodic inspection of the fuel line installation and tamper seal - typically aligned with the vehicle's existing service schedule. For fleet operators managing hundreds or thousands of vehicles across multiple countries, this simplicity translates directly into lower operating costs.

Globally Certified

The System 80 is type-approved under EU/ECE Regulation R89 and holds certifications from UTAC (France), TÜV (Germany), and VCA (United Kingdom). These approvals are recognised by enforcement agencies across Europe, the Middle East, Africa, and Asia - making the System 80 a single product that can be deployed across an international fleet without requiring different hardware for different territories.

Technical Specifications

Product Name System 80 Speed Limiter, by Autokontrol
Operating Principle Mechanical, works on the vehicle's fuel line
Engine Type Mechanically controlled engines
Speed Setting Range 20-120 km/h (adjustable at installation)
Speed Accuracy ± 1-2 km/h
Power Supply None required (purely mechanical)
Operating Temperature -40°C to +85°C
Tamper Protection Tamper-evident seal with unique serial number
Certifications EU/ECE R89, UTAC, TÜV, VCA
Mounting On the vehicle's fuel line
Typical Installation Time 60 minutes
Warranty 2-year manufacturer warranty on hardware
Designed & Manufactured Chorley, Lancashire, UK

Compatible Vehicles

  • Developing market fleets where electronic infrastructure and diagnostic support are limited
  • Construction and plant vehicles operating in harsh, dusty, or wet environments where electronics are vulnerable
  • Older commercial vehicles with mechanically controlled engines that predate CAN bus technology
  • Agricultural vehicles required to comply with speed limits on public roads
  • Budget-conscious fleet operators who need reliable speed compliance without the cost of electronic systems
  • Mixed fleets with both mechanical and electronic engines: the System 80 covers the mechanical side while the DBW covers the electronic side

GeoKontrol 2

IoT GPS geofenced speed control. Vehicles automatically adjust speed in 20mph zones, construction sites, or custom geofenced areas - no driver input needed.

Download the full datasheet (PDF)
Autokontrol graphic of a geofenced zone with four location pins drawn over a 3D city map

Urban 20mph Zones

Local authorities across the UK are implementing 20mph speed limits in residential areas. GeoKontrol 2 ensures fleet vehicles automatically comply with these variable speed zones - even when the driver is unfamiliar with the area or distracted.

Construction Sites

Construction sites have strict speed limits (typically 5-15 mph) that change as the site develops. GeoKontrol 2 allows site managers to define and update speed zones in real time as the site layout evolves, without waiting for physical speed bumps or signage.

School Zones

Speed compliance near schools is critical. GeoKontrol 2 can enforce reduced speeds during school hours and relax the limit outside those hours - automatically, based on the schedule programmed in the zone database.

Depots, Warehouses, and Yards

Vehicle speed in depot areas is a common source of accidents and near-misses. GeoKontrol 2 can enforce 5 mph limits within the depot boundary, then allow normal road speeds once the vehicle exits the gate.

Residential Delivery Routes

Last-mile delivery fleets operating in residential areas can use GeoKontrol 2 to automatically reduce vehicle speeds when entering residential zones, improving safety and reducing noise complaints.

Technical Specifications

Product Name GeoKontrol 2 GPS Geofenced Speed Control, by Autokontrol
Operating Principle GPS geofence-based variable speed control
GPS Receiver Multi-constellation GNSS (GPS, GLONASS, Galileo)
Position Accuracy ± 2.5 metres (CEP50)
Connectivity 4G LTE cellular (SIM included)
Zone Updates Over-the-air, real-time
Maximum Zones Unlimited
Speed Setting Range 5-120 km/h per zone
Power Supply Vehicle 12V / 24V DC
Operating Temperature -30°C to +70°C
Tamper Protection Tamper-evident seal + remote tamper alert
Certifications EU/ECE R89, CE marked
Typical Installation Time 90-120 minutes
Warranty 2-year manufacturer warranty on hardware
Designed & Manufactured Chorley, Lancashire, UK

Our Client Success Stories

We work with a range of clients globally. We're trusted by many manufacturers in the automotive and motorcycle industry.

Novuna Vehicle Solutions

As a customer of Scorpion Automotive Ltd, alongside Network Rail, Novuna Vehicle Solutions has been thoroughly impressed with the professionalism, reliability, and overall quality of service provided.

The speed limiters supplied have been dependable, easy to integrate, and perfectly suited to our requirements. Communication has been excellent throughout, and the team handled everything with efficiency and care.

Overall, a truly great service from start to finish - fantastic support and highly recommended.

Thanks from all the team at Novuna.

Novuna Vehicle Solutions
Toyota

Scorpion have always provided Toyota (GB) PLC with an outstanding service in terms of product development, good supply and reliability of the product itself and are responsive to our queries and requests at all times.

Alan Barrett
Manager, Product - Toyota (GB) PLC
DAF Trucks

Scorpion Automotive has consistently delivered parts and components meeting or exceeding the PACCAR 10PPM quality performance requirements. Thank you and congratulations on your achievement. We look forward to our continued successful relationship.

Jos Smetsers
Executive Director PACCAR Purchasing, Europe. Board of Management - DAF Trucks N.V.
FAQs

Speed limiter questions answered

What is a GPS speed limiter?

A GPS speed limiter uses satellite positioning to know where a vehicle is and caps its speed to the limit set for that location. With GeoKontrol 2 you draw zones such as depots, airports or 20mph areas and set a speed for each, from 5 to 120 km/h, with zone updates sent over the air.

What is a vehicle speed limiter?

A vehicle speed limiter stops a vehicle exceeding a set maximum speed, however hard the accelerator is pressed. The Autokontrol range covers Drive-By-Wire, SENT and mechanical System 80 limiters, plus GeoKontrol 2 for location-based limits.

Which speed limiter does my vehicle need?

It depends on the throttle system. Drive-By-Wire suits electronic throttles, SENT suits the latest SENT-protocol vehicles, and System 80 suits mechanically controlled engines. A DBW limiter will not work on a SENT vehicle, so we confirm the throttle type before you order.

How long does a speed limiter take to fit?

A System 80 takes about 60 minutes on most vehicles and a Drive-By-Wire limiter about 1.5 hours. TrackSpeed takes about 60 minutes.

Are Autokontrol speed limiters type approved?

Yes. The range is type approved to EU/ECE Regulation R89, and the System 80 also holds UTAC, TUV and VCA certifications.

Who makes Autokontrol speed limiters?

Autokontrol, part of the Scorpion Group. The limiters are designed and built in Chorley, Lancashire, for petrol, diesel, hybrid and all-electric vehicles, equipment and plant.
